SBC Fabricated Intake Manifold – Clear Anodized

Overview

Increase horsepower and torque with our tunnel ram style fabricated intake manifold. Fits most OEM/stock deck height 1955-1986 SBC V8 cylinder heads with a single 4-barrel square bore carburetor and works with OEM/stock distributors. Features a TIG welded T-6061 aluminum construction, CNC machined flanges and available in a clear anodized or black finishes and includes new intake manifold gasket kit.

FEATURES

• Increases Horsepower and Torque
• 2,200-6,800 RPM Range
• TIG Welded T6061 Aluminum Construction
• CNC Machined Flanges
• 7.00″ Overall Height
• Includes Intake Manifold Gasket Kit
• Clears OEM/Stock Distributors
• (2) 1/2″ NPT Coolant Ports
• (1) 3/8″ NPT Vacuum Port (On Plenum)

IMPORTANT NOTES

• MOUNTING HARDWARE AND WATER NECK SOLD SEPARATELY

RECOMMENDED PARTS

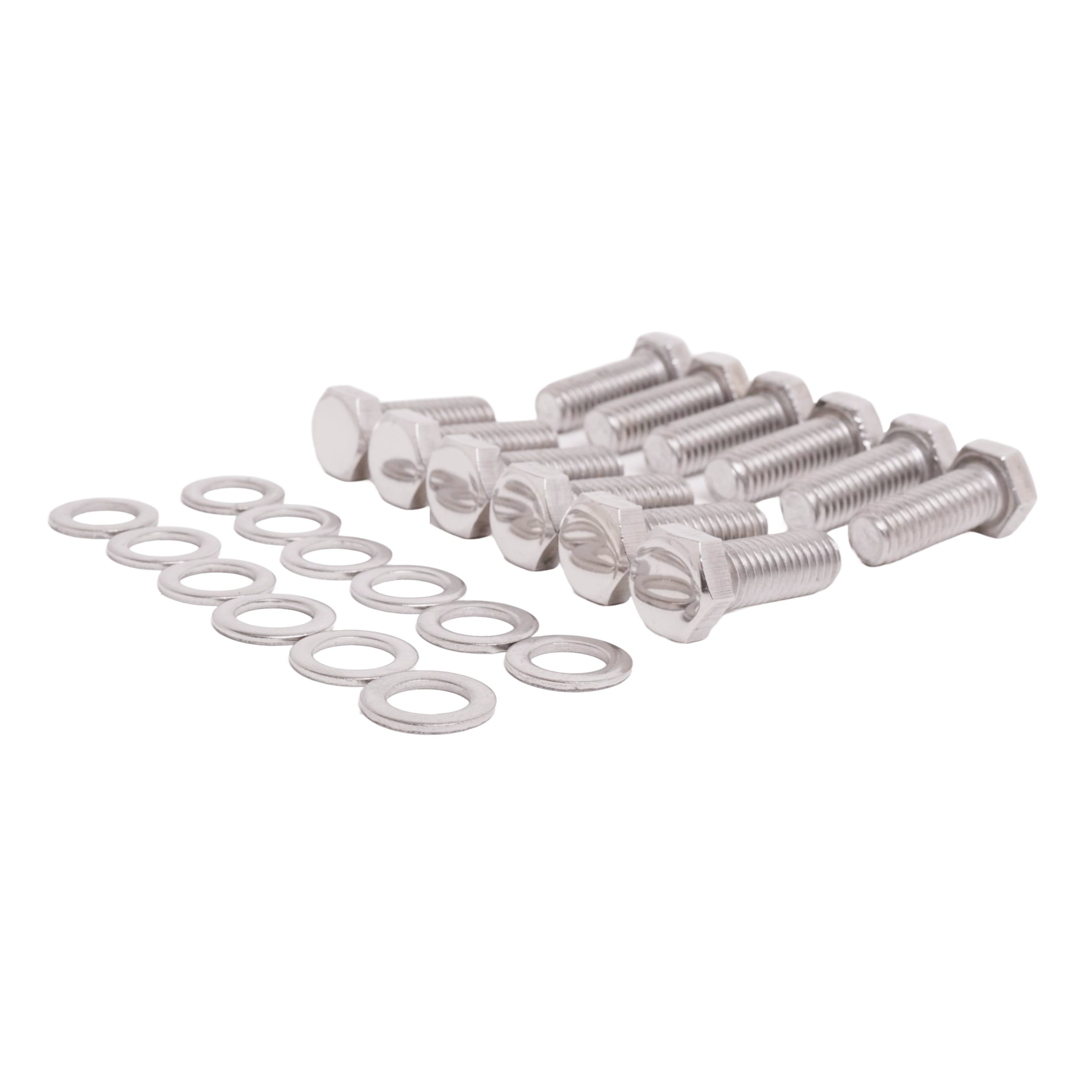

• Intake Manifold Bolt Kit: R7531S
• Water Neck: Small Block Chevy

Disclaimer

This product is legal for off road use and non pollution controlled vehicles (1965 & older); however, it has not been tested or approved by the California Air Resources Board (CARB) for highway vehicles in the state of California. By purchasing this product, buyer agrees it will not be used on pollution controlled vehicles in California, or in a state with similar emissions regulations.

WARNING: Cancer and Reproductive Harm – www.P65warnings.ca.gov

Resources

PART NUMBERS

• Clear Anodized: R5445
• Black: R5445BK
